HOME

PRODUCT

Electric Forklift

Electric Forklift

HC X Series 4-5T Electric Forklift

Item Reference: MHF30

Product Code: HC X 40/45/50

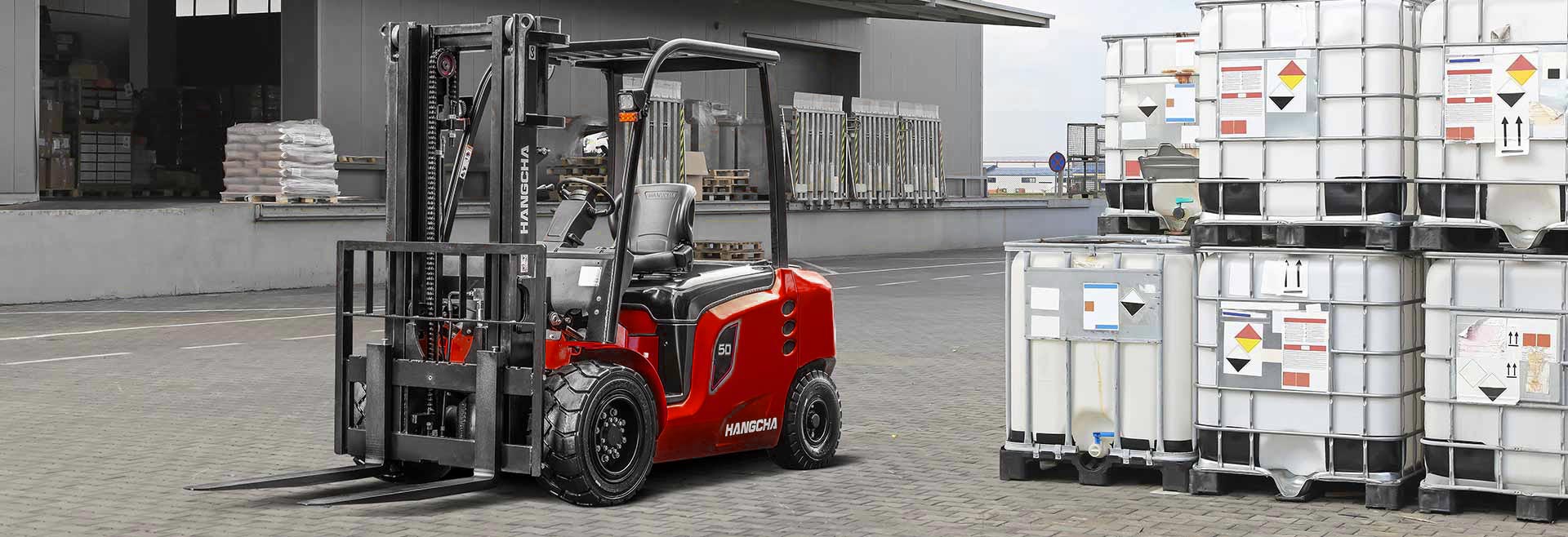

The compact and robust X-Series Electric Forklift Truck, 4.0 – 5.5t offers an increased turning angle of the inner and outer steering wheels for maximum performance in narrow spaces. The optimised wide-view mast and overhead guard design combined with a low dashboard enables a broader view of the operator for increased safety.

Drive Type:

Electric

Load Capacity:

4000-5000 kg

Lift Height:

Max - 7000mm

FEATURES
TECHNICAL SPEC

Features

Electric Forklift

Stability

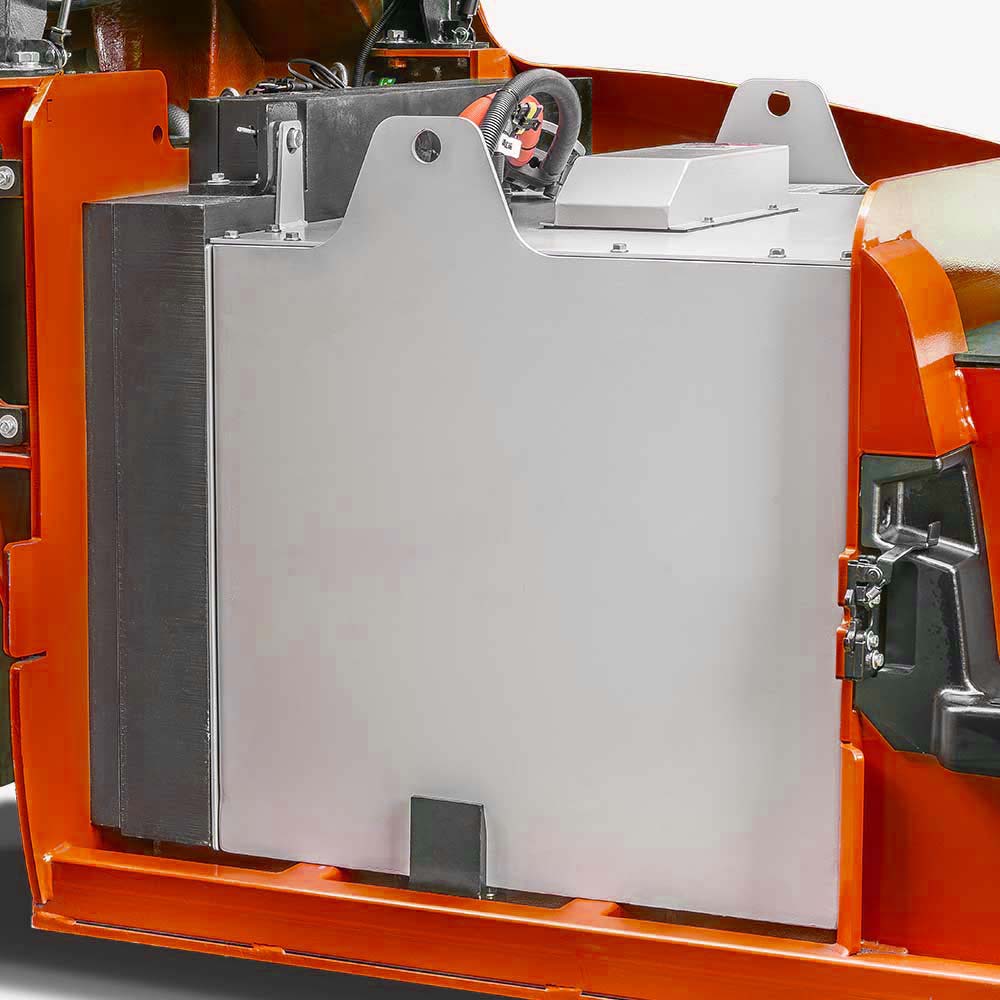

The drive motor is arranged in parallel, the battery is placed at the bottom of the vehicle frame, the wheelbase and rear wheel pitch are increased, the swing point of the steering axle is raised, and the distance between the front of the fork and the front axle is reduced, to enable excellent stability.

Electric Forklift

Maintainability

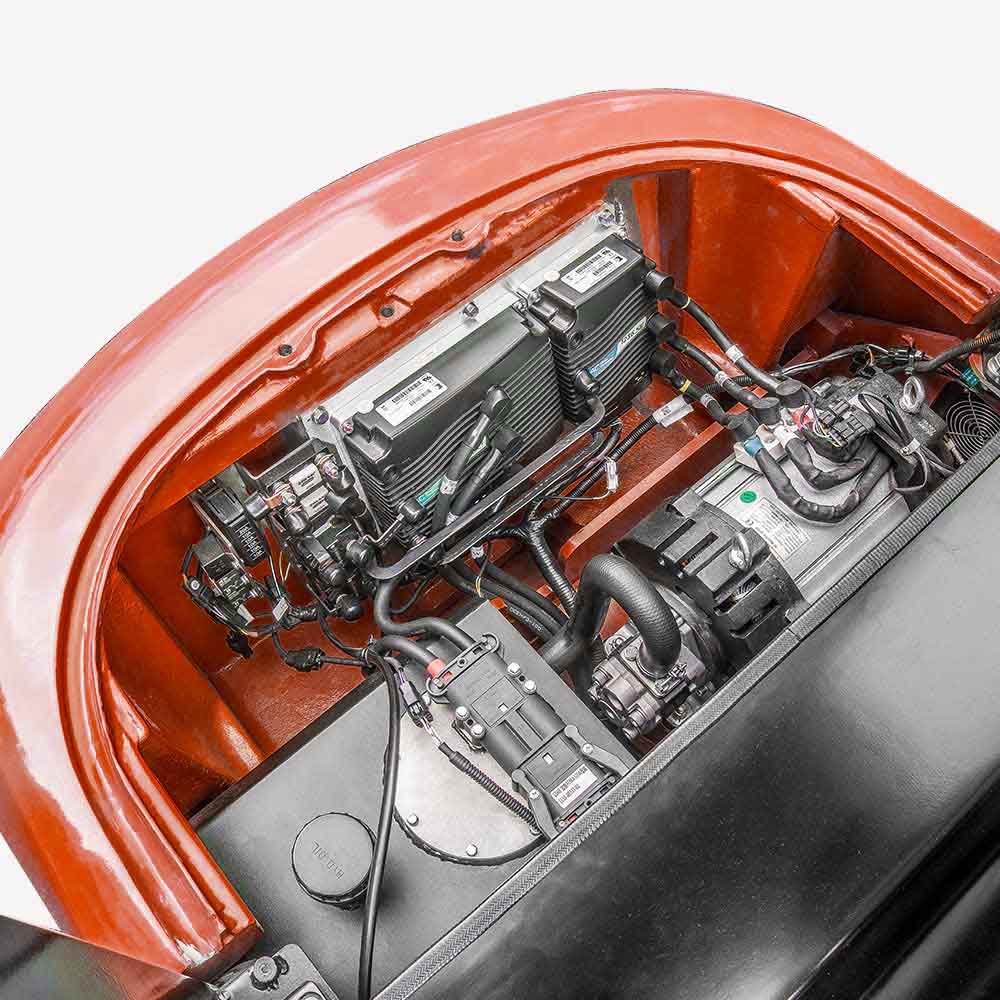

The fully opened hood quite facilitates the maintenance of the battery, oil pump motor and electric control assembly.

Electric Forklift

Advancement

The high-frequency MOSFET integrated controller ensures smooth and accurate driving and lifting control, and has excellent speed regulation performance, good performance of electronic control matching the motor, functions of regenerative braking, reverse braking and anti-sliding on ramps, etc., and high safety and reliability.

Electric Forklift

Safety

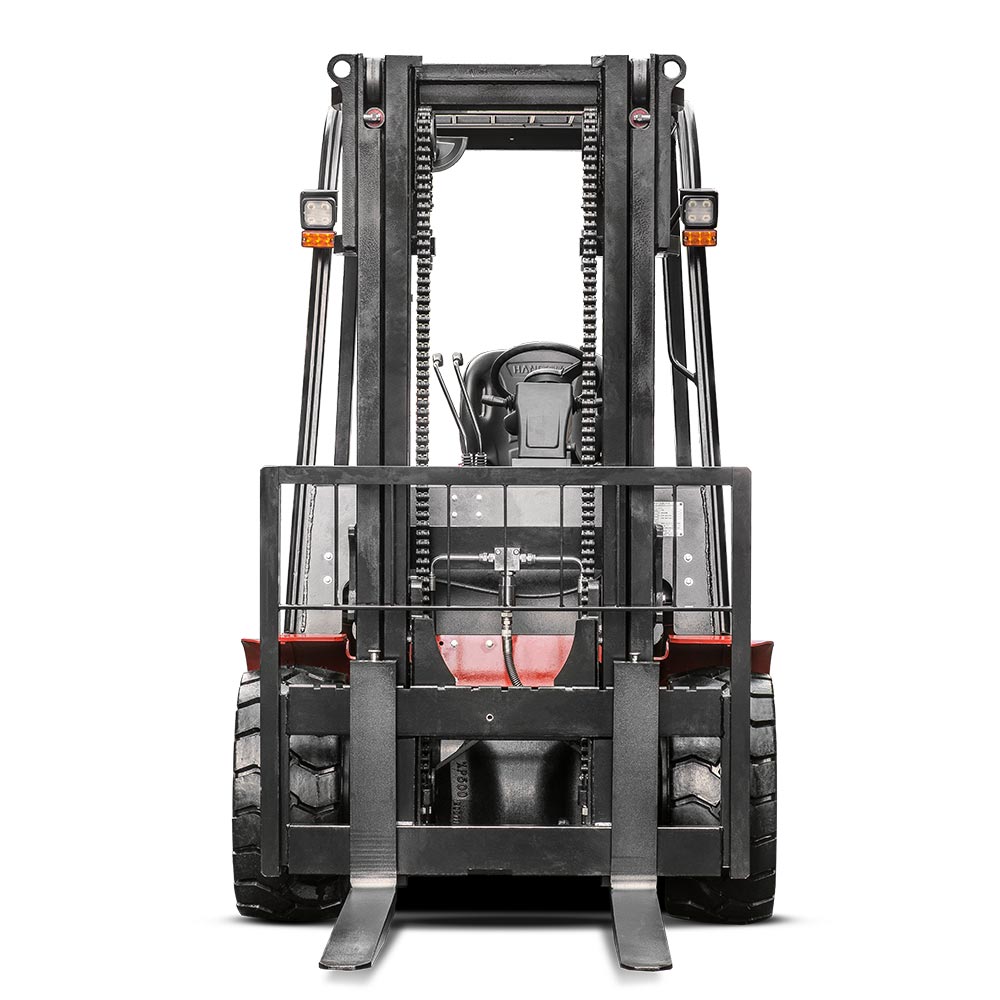

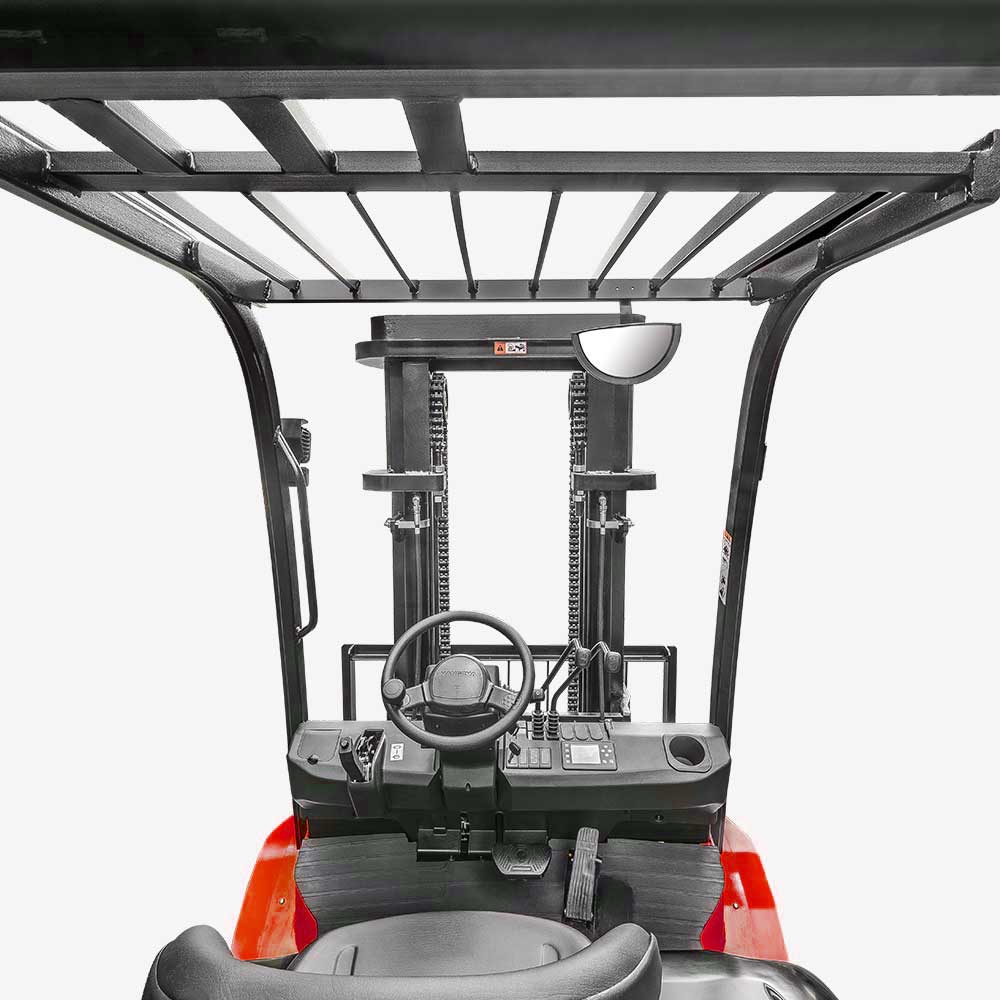

The optimized design of the wide-view mast, wide-view overhead guard and low dashboard enables a broader view of the operator and higher safety.

Electric Forklift

Comfort

In accordance with the ergonomically design, the wheelbase is increased to enable enlarged leg space. The radius of the hand wheel is reduced to 300mm and the seat can be adjusted backwards and forwards, so that the operator can choose the best driving position.

Technical Spec

Drive Type:

Electric

Load Capacity:

4000-5000 kg

Lift Height:

Max - 7000mm

Item Reference:

MHF30

Multi-Function Colour Display
USB Interface
Dynamic Load Sensing
Panoramic Rear View Mirror
LED Lighting Package
Back-up Beeper

Here to Help

Similar Products

1 - The hire price is based on a like for like machine with a 4000-5000 kg load capacity.

2 - The sales price is a starting price without additional extras.
